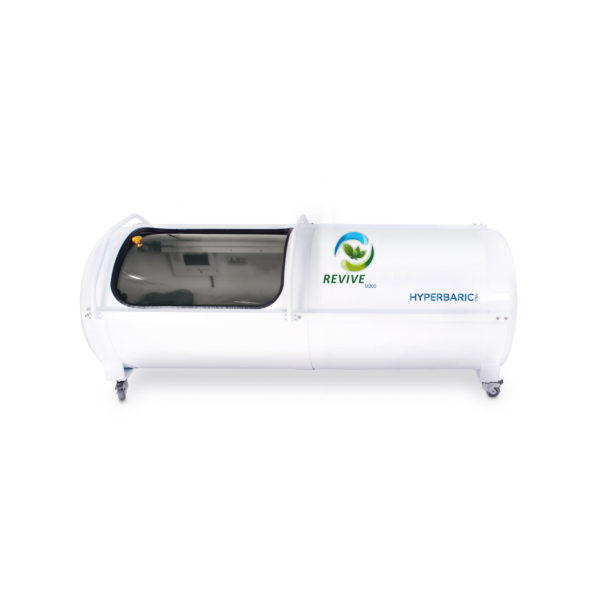

HyperBaric Oxygen Chamber HardShell 31.5 inch Diameter 2 ATA
This Hyperbaric Oxygen Chamber provides pressures up to 2.0 ATA and is designed for durability and comfort. It also offers ease of entry and exit along with many more advanced features, available today in the hyperbaric product market space.
$39,900.00
Categories 2 ATA, Hard Chamber
Tag Oxygen Chamber
Description
31.5-inch Diameter 2 ATA This Hyperbaric Oxygen Chamber provides pressures up to 2.0 ATA and is designed for durability and comfort. It also offers ease of entry and exit along with many more advanced features, available today in the hyperbaric product market space.
HYPERBARIC OXYGEN CHAMBER FEATURES:
- Delivers safe and effective oxygen at 2 ATA or 100 kPA.
- Smart System monitors and maintains safe CO2 levels.
- Features customizable settings for each session as follows: Usage Time, Pressure, and Temperature.
- All controls are available via a simple touchscreen display on both the internal and external chamber allowing total control of the chamber either internally or externally.
- The sliding glass door makes for ease of entry and exit and also allows for ample light into the chamber while also providing the ability to view clients easily.
- Features an emergency pressure release valve on the inside of the chamber to speed up depressurization in an emergency.
- Provides the best quality and features at this price-point whereas others offer the same quality at double the price.
- Features ground protection on the entire chamber body to ensure any electrical static impulses are removed.
- Additional Oxygen Inlet Port available for expansion.
- An Air Conditioning system is included to keep you comfortable during your session. Can be cooled down to 18C (64.4F).
- Equipped with an internal pressure gauge to allow the user to observe the pressure.
- Can be operated continuously making it ideal for doctors’ offices.
- Can be operated without the assistance of a 2nd person.
- Business financing is available. Call for details.
- Can fit through a 33.5-inch doorway.
- 2 Year Warranty
SAFETY FEATURES AND ADVANCED DESIGN
- Pressure cut off by software – Automatic pressure relief when the pressure increases over 110 kPa in the chamber.
- Mechanical Pressure cut off – A safety valve (certified product) is installed to prevent the internal pressure from increasing over 120 kPA.
- Emergency release switch – Quickly release the pressure from inside to stop the session and depressurize the chamber by operating a one-touch valve in case of emergency.
- Automatic emergency power-off system – Automatic pressure relief in case of power failure or power off.
- Custom Controls – Automatically controls your session time, pressure, and temperature and depressurizes the chamber upon completion of the session.
- Real-Time Graph – Allows users to observe the current treatment progress.
- The System detects temperature, humidity, and carbon dioxide inside the chamber and displays it on the inside allowing automatic ventilation at all times.
- The Interphone system allows the user to stay in communication even in case of a power failure.
- A wide transparent window allows being seen from inside the chamber and helps address the anxiety concern of some.
- 40L / min ~ 100L / min pressure valve can adjust the flow rate according to the operator’s choice.
- Easy installation and operation.
- 2 Ports available to increase the oxygen.
SPECIFICATIONS OF OXYGEN HEALTH SYSTEMS HYPERBARIC HARD CHAMBER
HYPERBARIC CHAMBER | Usage : Operation Pressure : Size : Weight: Material : Maximum Weight Limit |
One Patient 10~100 kPa (1.1 ~ 2.0 ATA) 86-inch (L) x 31.5 W – interior 220 kg or 485 lbs Steel 250 kg or 550 lbs |
---|---|---|
ALL IN ONE SYSTEM | Air Volume : Voltage : Power Consumption : Size: Weight : Material Installation Space |
100 L / Min 115 VAC, 50/60 Hz 950 VA (W) 17.7″ x (D) 25.3″ x (H) 43″ 94 kg Steel (W) 3000 mm / 118-inches (D) 1500 mm / 59-inches |
WEIGHT | POWER | SIZE | |
Oxygen Concentrator | 42 lbs | 640 Watt | 13″ L x 12″ W x 24.5″ H |
OXYGEN CONCENTRATOR FEATURE ★ FDA Approved ★ PSA molecular sieve high technology. ★ Non-toxic and ECO-Friendly. ★ 18 to 20 PSIG @ 95% Purity. ★ Continuous flow oxygen production, no oxygen tank required. ★ 630 Watt (10 Amps) Heavy-duty motor. OXYGEN CONCENTRATORFDA Approved providing stable oxygen purity at 10 LPM with 95% purity after 5 minutes. Provides a hefty 640 Watt Motor for long-lasting durability and 18 to 20 PSIG suitable for high-pressure chambers! 31.5-inch Diameter 2 ATA
SPECIFICATION |
The chamber body easily passes through doorways 90 cm wide. The handles can also be detached which would allow the unit to pass through an 85 cm doorway.
